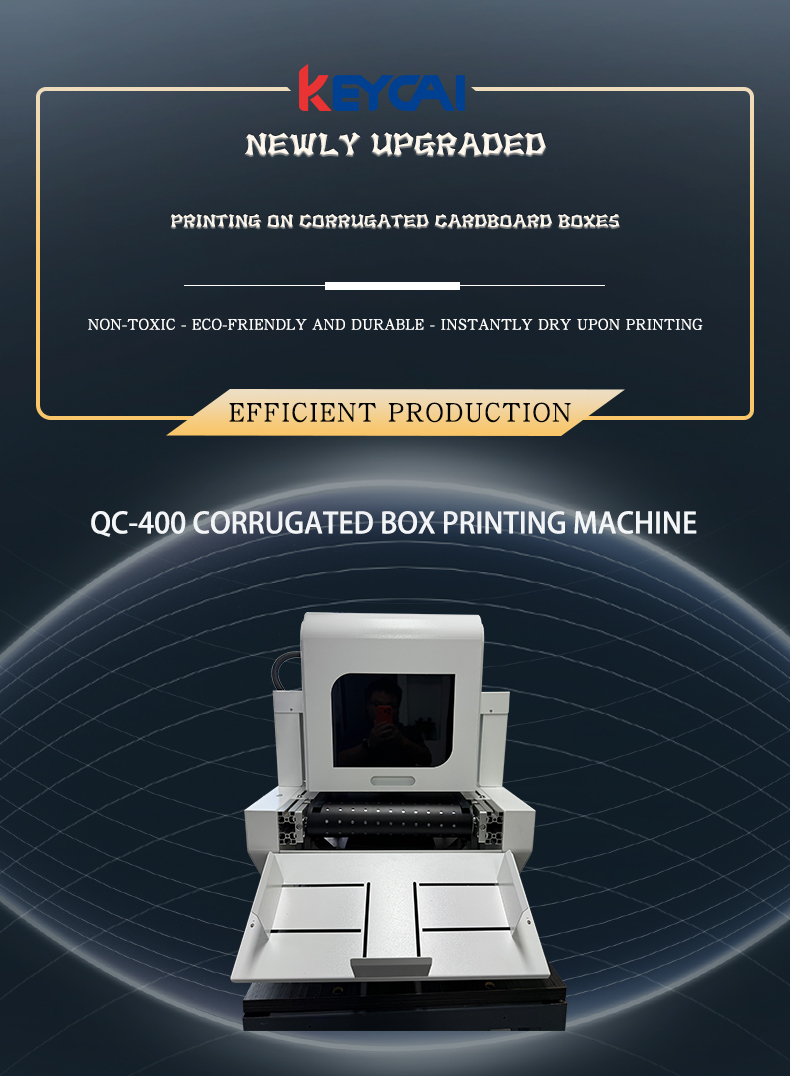

400 Carton Printing Machine

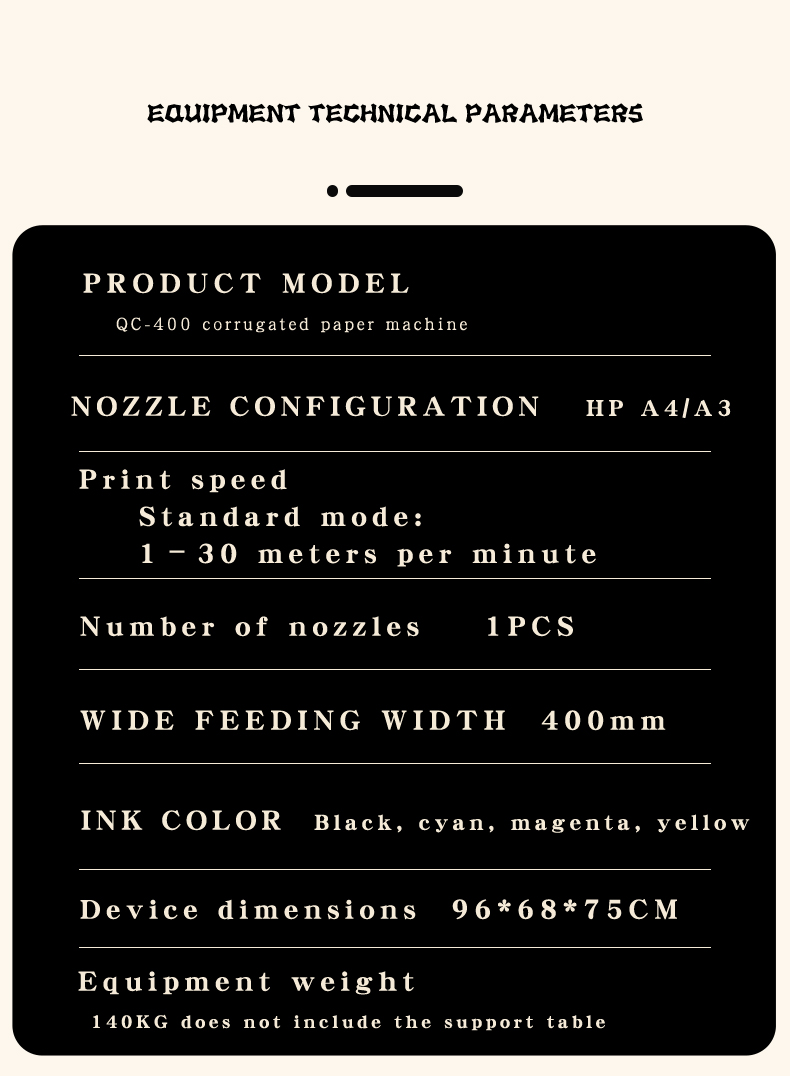

| Parameter | Specification |
| Model | QC-400 |
| Print Head Model | Ricoh Series/Epson I3200/I1600 Industrial Print Head (Vision Positioning Optional) |
| Maximum paper width | 400mm |
| Print widht | 210mm/420mm |
| Print Height | 0-90mm |
| Additional Functions | Color Printing, Embossment Printing, Varnish Printing, Plate-free Bronzing |
| Print Mode | Unidirectional/Bidirectional, 4PASS/6PASS/8PASS |
| Print Resolution | 720*720DPI / 720*1400DPI |
| Print Head Protection | Print Head Anti-collision System |
| Lifting Function | Ink Cartridge Lifting: Electronic Automatic/Manual Intelligent Sensor Adjustment |
| Software | Ruiyin RIP/PP/PF; Supports Multiple Printing Software |
| Supported Image Formats | TIFF(RGB/CMYK), BMP, PDF, EPS, JPEG |
| Ink Colors | CMYK |
| Color Difference Management | Built-in ICC Color Management Curve |
| Intelligent Ink Constant Temperature System | |
| Anti-clogging Function | Timed Ink Stirring System, Automatic Cleaning & Flushing Function |
| US Pure Medical-grade Permeation Filter Device | |
| Power Consumption | 0.4 kWh/Hour |
| Rated Voltage | AC220V 50HZ |
| Power Requirements | AC220V(±10%); 50Hz; P:600W (Main Unit) |
| Operating Environment | Temperature: 20°C~32°C / Humidity: 40~70% |
| Ink Supply System | siphon ink supply |
| Safety Protection | Platform Vacuum Suction Function |
| Print Head Anti-collision Function | |
| Environmental Standards | No VOC Emissions, Ink Certified by SGS & MDS |
| Equipment Structure | Frame: Full Steel Structure with Quenching & Precision Milling |
| Beam: Injection-molded Beam | |
| Net Weight | 95KG |
| Equipment Dimensions | 610mm*550mm*490mm (Length*Width*Height) |
